Your current position:Home >> Procucts >> Knotted wire mesh fence >> Knotted Wire Mesh Fence BD-02

Knotted Wire Mesh Fence BD-02

2012-05-28 10:31:22 Source:Hebei BangDa Metal Products Co.,Ltd Browse:1710



Knotted Wire Mesh Fence BD-02


Top / B
ottom wire dia: 2.5mm-3.6mm.

Line/stay wire dia.: 1.7mm-2.5mm

Zinc coating: 60-240g/m2

Wire diameter:1.8-3.5mm


Vertical spacing:15-60cm


Knotted Wire Mesh Fence BD-02

1.Material:Hot-dipped galvanized wire, which is made of Q235 iron rod.
Anti-corrosion form: hot-dipped galvanized and electric galvanized.

2.Field fence diameter of all wires used:

Top / Bottom wire dia: 2.5mm-3.6mm.    Line/stay wire dia.: 1.7mm-2.5mm
Zinc coating: 60-240g/m2            wire diameter:1.8-3.5mm

vertical spacing:15-60cm             mesh height: below 2.4m
roll length: 25m-200m

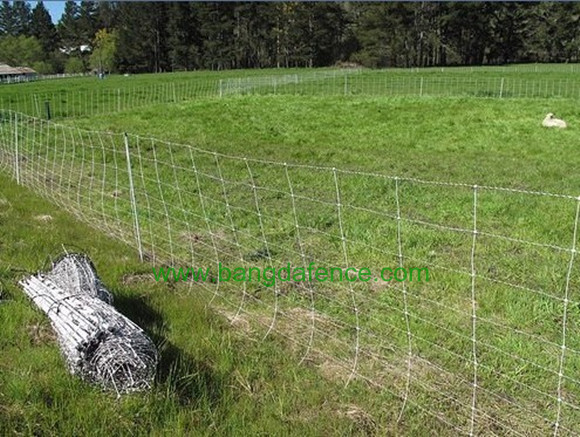

3.Deer,cattle and animal field fence applications:field fence is a kind of mesh used in
cattle,goat,deer and pig.it is used for grassland,pastures,
protection of ecological
projects,protecting grassland,forestry,highway,and environments.


Specification mesh

Set and bottom wire Dia.
(mm)

In wire
Dia.
(mm)

Volume dia.(mm)

Type

Specification

1

7/150/813/50

102+114+127+140+152+178

2.5

2.0

270

2

8/150/813/50

89(75)+89+102+114+127+140+152

2.5

2.0

270

3

8/150/902/50

89+102+114+127+140+152+178

2.5

2.0

270

4

8/150/1016/50

102+114+127+140+152+178+203

2.5

2.0

270

5

8/150/1143/50

114+127+140+152+178+203+229

2.5

2.0

270

6

9/150/991/50

89(75)+89+102+114+127+140+152+178

2.5

2.0

270

7

9/150/1245/50

102+114+127+140+152+178+203+229

2.5

2.0

270

8

10/150/1194/50

89(75)+89+102+114+127+140+152+178+203

2.5

2.0

270

9

10/150/1334/50

89+102+114+127+140+152+178+203+229

2.5

2.0

270

10

11/150/1422/50

89(75)+89+102+114+127+140+152+178+203+229

2.5

2.0

270
