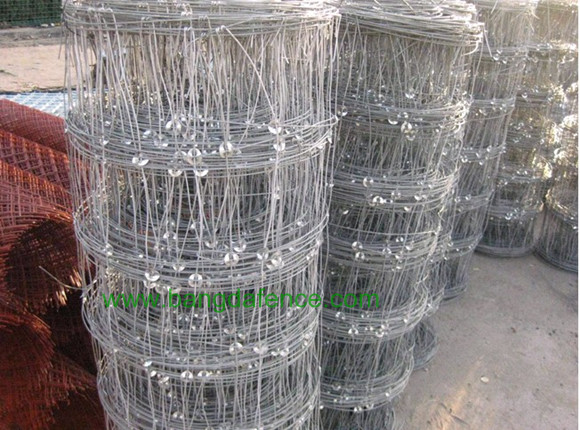

Grassland Fence BD-05
1)Material:galvanized iron wire
2)Top wire diameter:3.1mm
3)Bottom wire diameter:3.1mm
4)Wrap wire:2.2mm
5)Weft wire diameter:2.2mm
6)With 7 wires
7)Weft opening:15cm
8)Height:0.813m
9)Length:50m
10)Wrap opening design:102+114+127+140+152+178(cm)
11)Surface treatment:hot-dipped galvanized

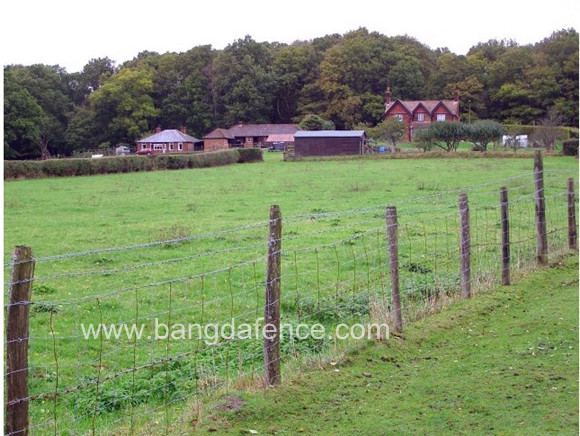

12)Application:inpasture rangeland
Specifications:
|
|
Specification mesh |
Set and bottom wire Dia.
(mm) |
In wire
Dia.
(mm) |
Volume dia.(mm) |
|
Type |
Specification |
|
1 |
7/150/813/50 |
102+114+127+140+152+178 |
2.5 |
2.0 |
270 |
|
2 |
8/150/813/50 |
89(75)+89+102+114+127+140+152 |
2.5 |
2.0 |
270 |
|
3 |
8/150/902/50 |
89+102+114+127+140+152+178 |
2.5 |
2.0 |
270 |
|
4 |
8/150/1016/50 |
102+114+127+140+152+178+203 |
2.5 |
2.0 |
270 |
|
5 |
8/150/1143/50 |
114+127+140+152+178+203+229 |
2.5 |
2.0 |
270 |
|
6 |
9/150/991/50 |
89(75)+89+102+114+127+140+152+178 |
2.5 |
2.0 |
270 |
|
7 |
9/150/1245/50 |
102+114+127+140+152+178+203+229 |
2.5 |
2.0 |
270 |
|
8 |
10/150/1194/50 |
89(75)+89+102+114+127+140+152+178+203 |
2.5 |
2.0 |
270 |
|
9 |
10/150/1334/50 |
89+102+114+127+140+152+178+203+229 |
2.5 |
2.0 |
270 |
|
10 |
11/150/1422/50 |
89(75)+89+102+114+127+140+152+178+203+229 |
2.5 |
2.0 |
270 |
 |
