Your current position:Home >> Procucts >> Wire mesh fence >> High Securty Fence BD-08

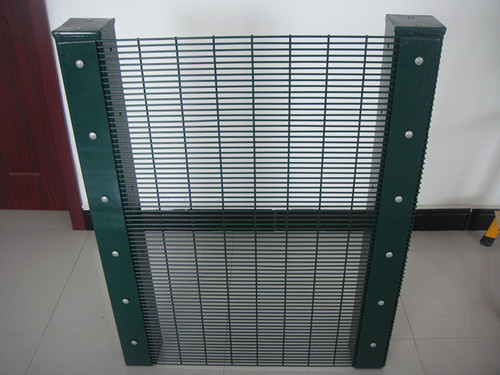

High Securty Fence BD-08

2012-05-22 11:56:24 Source:Hebei BangDa Metal Products Co.,Ltd Browse:2114

  High Securty Fence BD-08


with flawless welded steel post

high strength welded


High Securty Fence BD-08

1.Formidable

An effective deterrent to intruders avaliable in height up to 3.6m --specially designed
for high security applications.



2.Panel

Maunfactored from hard drawn wire and electo-resistance welded at every intersection

Mesh Pattern: 76.2mm*12.7mm resistance welded at each intersection

Horizontal Wires:4mm diameter at 12.7mm centres

Vertical Wires:4mm diameter at 76.2mm centres.

Presentation:Overlapped 75mm minimum at each post for securing with slotted clamp
bars and M8 diameter centres.

Welded strength:

---75% of minimun tensile strength of the wire

Tensile range 540---690n/m2



3. Coating technique:

Panel made out of galavanized wire (min:40g/m2). An adhesion coating is gleven for
 a perfect adhesion with the polyester coating(min 100micron)
