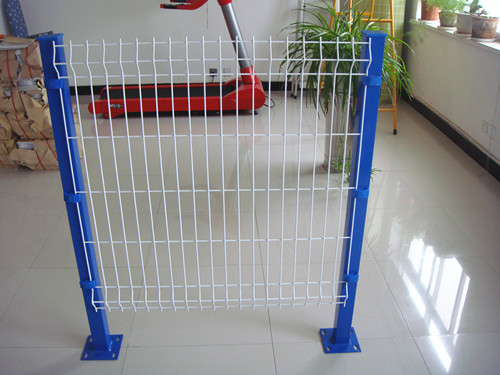

Welded Wire Mesh Fence BD-02
1.Material: high quality low carbon steel wire
2.Processing: weaving and welding,using low carbon steel wires ,
fixed by the linking accessories ot the post.
3.Post available:50x70mm,70x100mm peach shape post,1.2mm
thickness, pvc spraying to green, red, yellow, blue, etc
4.Finish treatment: electric galvanized, hot-dipped galvanized, PVC coated
5.Characteristics: high stength,good steel nature capacity,wonderful
shape,wide vision,easy to install, feel comfortable and bright.
|
Fence panel specification |
|
Panel size (height x length) |
Wire dia |
Mesh size |
Surface treatment |
Folds ( or no folds as your request) |
|
1.03m |
3mm-6mm |
50x75mm
50x100mm
50x150mm
50x200mm
75x100mm
55x200mm
60x150mm
Or as your request |
1 Electro GI+PVC coated
2 Electro GI+PVC painting(Spraying)
3 hot-dipped GI only
4 Hot-dipped GI +PVC coated or painting
|
2 |
|
1.23m |
2 |
|
1.5m |
2 or 3 |
|
1.53m |
2 or 3 |
|
1.7m |
3 |
|
1.73m |
3 |
|
1.8m |
3 or 4 |
|
1.93m |
3 or 4 |
|
2.0m |
4 |
|
2.03m |
4 |
|
2.4m |
4 |
|
Post specification |
|
post items |
Post dia |
Post thickness |
Post length |
|
Square post |
40x60mm or 60x60mm |
1.2-3mm |
1.5m-2.9m |
|
Peach shape post |
50x70mm or 70x100mm |
|
Round post |
38mm, 40mm, 50mm,70mm |
|
